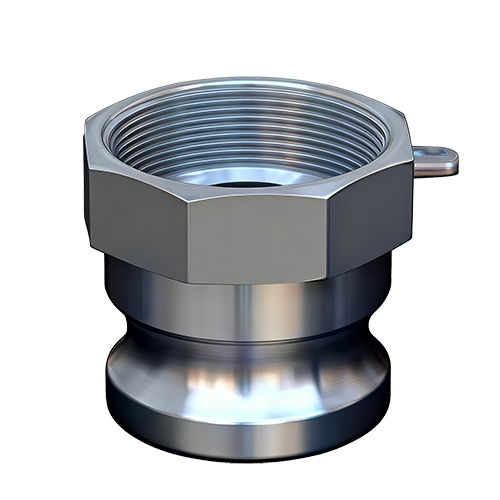

内螺纹 A型
Female thread (A Type)
规格 Specification | 螺纹标准 Thread standard | 材质 Material | 工作压力 (MPa) Operating pressure |
3/4" | 可供 GB、NPT、BSP、BSPP 螺纹 GB, NPT, BSP and BSPP threads are available. | 铝合金 Aluminum alloy | 0.6 |
1" | 0.6 |
1 1/4" | 0.6 |
1 1/2" | 0.6 |
2" | 0.6 |
2 1/2" | 0.6 |
3" | 0.6 |
4" | 0.6 |
5" | 0.6 |
6" | 0.6 |
8" | 0.6 |

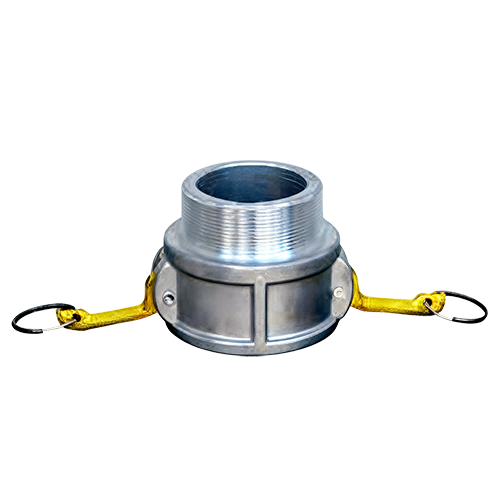

阴端外螺纹(Ｂ型)
Female-end male thread (Ｂ Type)
规格 Specification | 螺纹标准 Thread standard | 材质 Material | 工作压力 (MPa) Operating pressure |
3/4" | 可供 GB/NPT/BSP/BSPP 螺纹 GB,NPT,BSP and BSPP threads are available | 铝合金 Aluminum alloy | 0.6 |
1" | 0.6 |
1 1/4" | 0.6 |
1 1/2" | 0.6 |
2" | 0.6 |
2 1/2" | 0.6 |
3" | 0.6 |
4" | 0.6 |
5" | 0.6 |
6" | 0.6 |
8" | 0.6 |

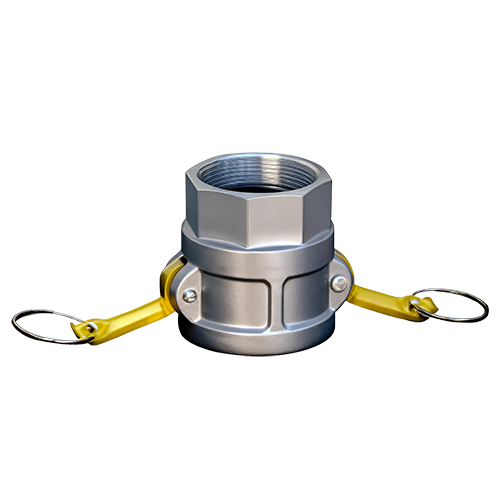

阴端内螺纹(D型)
Female-end female thread (D Type
规格 Specification | 螺纹标准 Thread standard | 材质 Material | 工作压力 (MPa) Operating pressure |
3/4" | 可供 GB/NPT/BSP/BSPP 螺纹 GB,NPT,BSP and BSPP threads are available | 铝合金 Aluminum alloy | 0.6 |
1" | 0.6 |
1 1/4" | 0.6 |
1 1/2" | 0.6 |
2" | 0.6 |
2 1/2" | 0.6 |
3" | 0.6 |
4" | 0.6 |
5" | 0.6 |
6" | 0.6 |
8" | 0.6 |
外螺纹(F型)
Outer Whorl (F Type)
规格 Specification | 螺纹标准 Thread standard | 材质 Material | 工作压力 (MPa) Operating pressure |
3/4" | 可供 GB/NPT/BSP/BSPP 螺纹 GB,NPT,BSP and BSPP threads are available | 铝合金 Aluminum alloy | 0.6 |
1" | 0.6 |
1 1/4" | 0.6 |
1 1/2" | 0.6 |
2" | 0.6 |
2 1/2" | 0.6 |
3" | 0.6 |
4" | 0.6 |
5" | 0.6 |
6" | 0.6 |
8" | 0.6 |

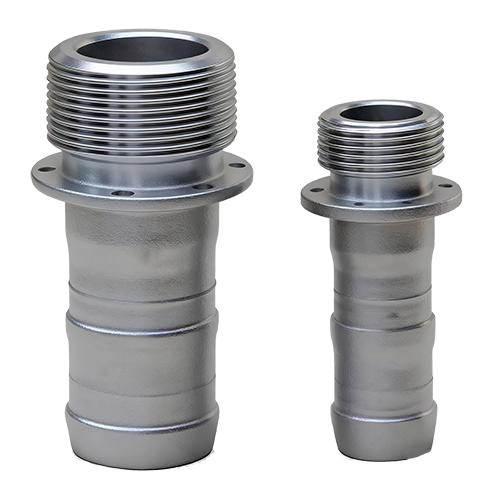

外螺接管
Male thread connector
规格 | 螺纹标准 | 材质 | 工作压力 (MPa) |
3/4" | 可提供 GB/NPT/BSP/BSPP 螺纹GB,NPT,BSP and BSPP threads are available | 铝合金 | 0.6 |
1" | 0.6 |
1 1/4" | 0.6 |
1 1/2" | 0.6 |
2" | 0.6 |
2 1/2" | 0.6 |
3" | 0.6 |
4" | 0.6 |
带滤网内螺纹
Female thread with filter screen
规格 | 材质 | 说明 |
2" | 铝合金 | 配不锈钢滤网 |
2 1/2" | 铝合金 | 配不锈钢滤网 |
3" | 铝合金 | 配不锈钢滤网 |

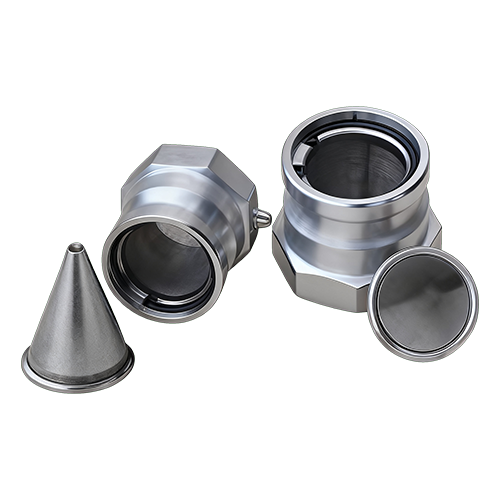

油气回收接头(内螺纹带阴)
Oil and gas recovery joint
规格 | 螺纹标准 | 材质 | 工作压力 (MPa) |
4" | 可提供 GB/NPT/BSP/BSPP 螺纹 GB,NPT,BSP and BSPP threads are available | 铝合金 | 0.6 |
